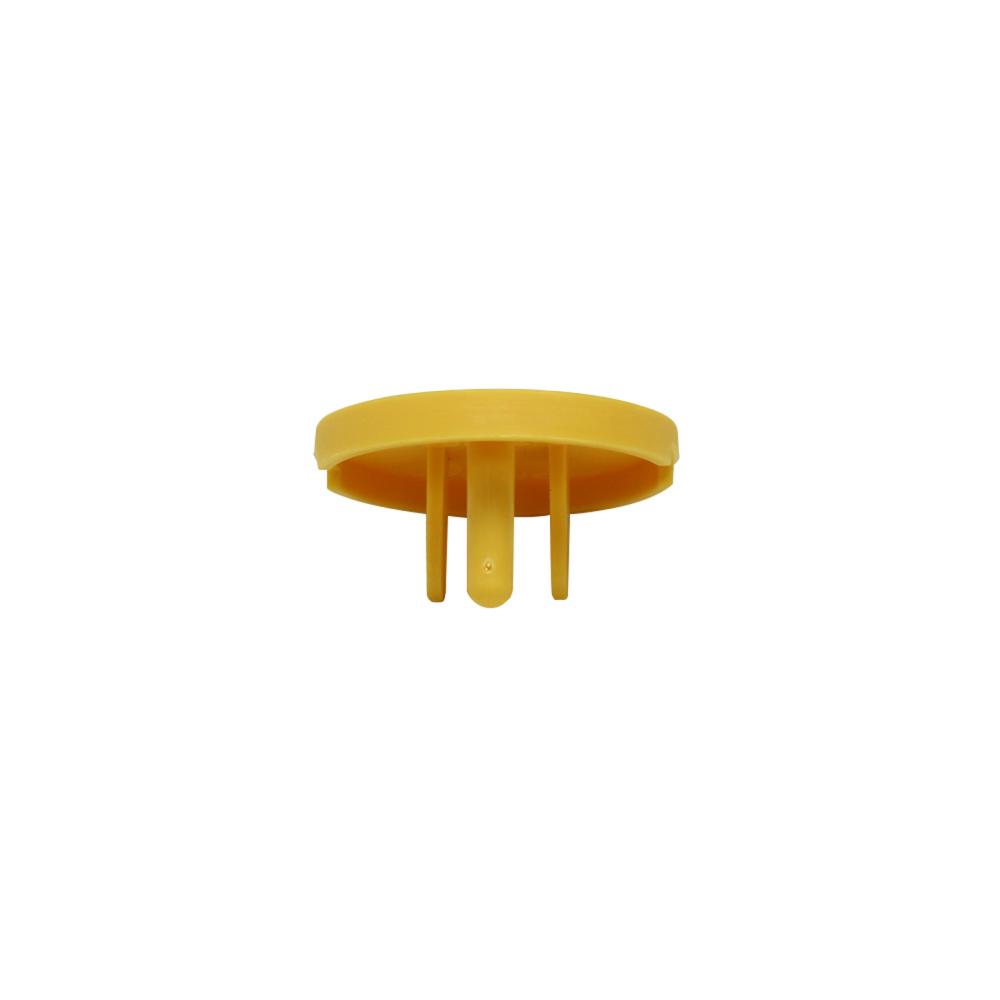

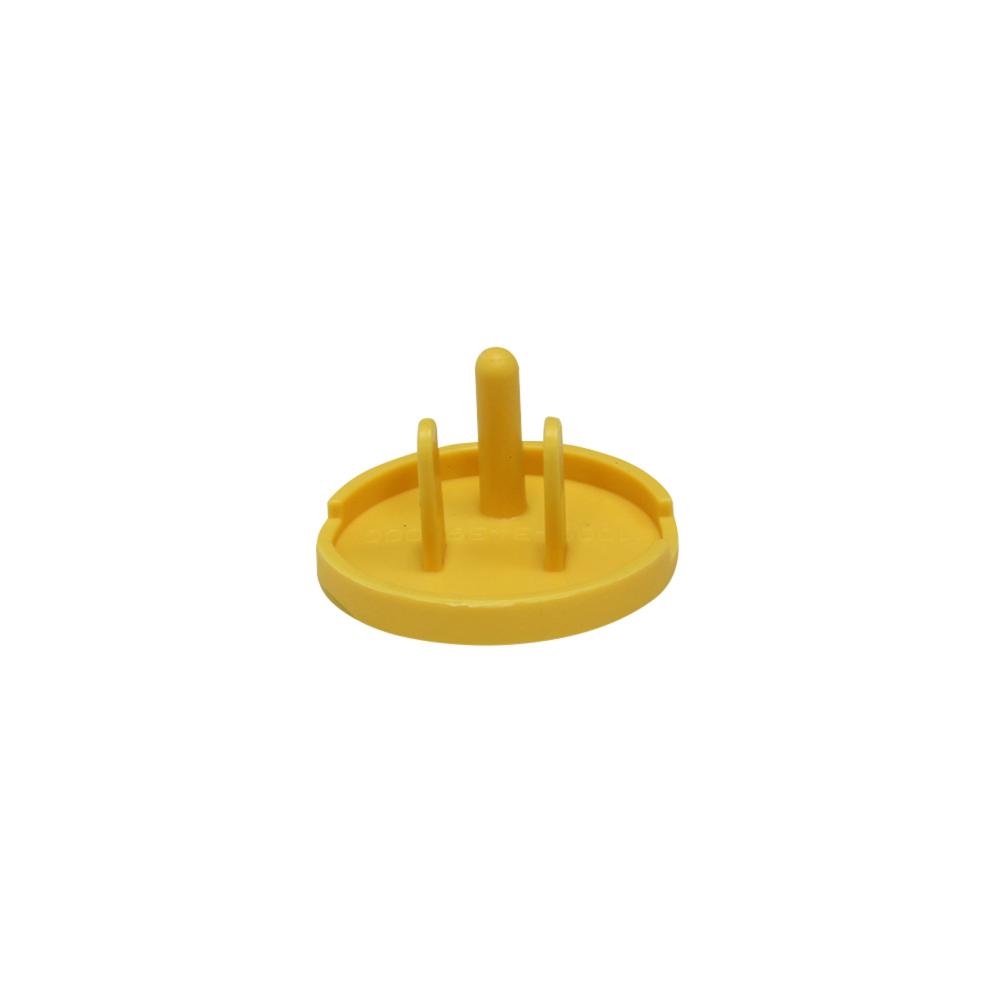

Plug NEMA Outlet - Injection Molded
| 1009-3439-000 | |
| New | |
| Anesthesia Delivery | |
| Aestiva | |
| GE HealthCare | |
| GE HealthCare LCS Parts | |
| GE HealthCare | |
Add to Wish List
Login To Shop
Please select date
Second Opinion Approval Needed
Enter your approval number and submit to add item(s) to cart.
Approval Number
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Second Opinion Approval Needed
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Features
- 3 pin type
- Protect earth leakage
- Heat resistant
- Glossy appearance
Product Overview
The Plug NEMA Outlet - Injection Molded is a power plug that is one of the AC inlet components. These plugs have two poles with a ground pin rated 125 volts maximum. The plug has two flat parallel pins with the same geometry and a solid pin or a flat metal folded into a 'U' shape on the other side. The ground pin is longer than the two parallel pins so that the device is grounded before supply is connected. The neutral insertion point in the socket is wider to accommodate polarized type plug. The neutral blade of the plug is not always wider than the line blades, since the ground pin enforces polarity. This type of plug or connector is called a NEMA 5-15. The power plug is used in XR Optima XR220amx, Aespire 7100, Engstrom, Aisys CS2, ARC Aestiva 7100, ARC Engstrom Carestation and in many other systems.
