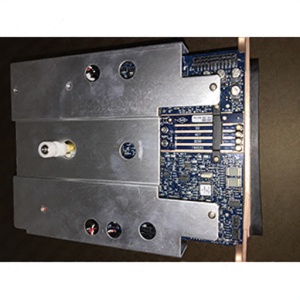

Electronic Vaporizer Assembly 1011-7004-000-S

1011-7004-000-S
1011-7004-000
New
Anesthesia Delivery
Aisys
GE HealthCare
GE HealthCare LCS Parts
GE HealthCare
N/A
Add to Wish List
Login To Shop
Login To Shop
Please select date
Second Opinion Approval Needed

Enter your approval number and submit to add item(s) to cart.

Approval Number

Please enter approval number

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.

Second Opinion Approval Needed

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name

OR

Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.


Features

  • Does not contain any dust, dirt, oils, grease, lint, fibers, paper, rust, chips, cleaning solutions, machining coolants and other foreign material
  • Provides efficient performance despite functioning in oxygen enriched environment
  • Durable and reliable
  • Packaged in a static shielding bag

Product Overview

The Electronic Vaporizer Assembly is an integral subsystem along with the agent cassette. The subsystem is provided to add an agent to the fresh gas flow. It mixes a specified amount of anesthetic agent into the fresh gas stream. The electronic control unit governs the flow through the agent cassette and the agent concentration in the fresh gas flow. The agent is delivered from the subsystem in one of two configurations depending on whether cassette pressure is below or above mixer output pressure. It consists of a backpressure valve which builds a pressure at the input to the vaporizer to drive gas through the cassette, if necessary a pressure relief valve that limits the maximum outlet pressure, the inflow and outflow flowmeters which measure flow by developing a pressure drop across a flow restrictor, the inflow and outflow valves which direct flow in the subsystem and an inflow check valve that prevents unmetered agent vapor from flowing backwards and entering the fresh gas stream.

Compatible Products

Aisys

Aisys

Equivalent Part

Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.

Equivalent PartPart Details
1011-7004-000

Electronic Vaporizer Assembly
