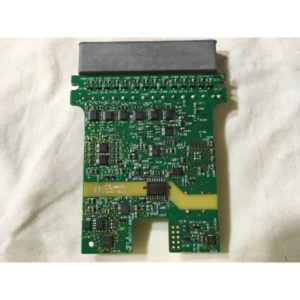

PCB Assembly Cam-14 v2
2028778-003 | |
2028778-001 900995-004 | |
New | |
Cardiology | |
Resting ECG | |
GE HealthCare | |
GE HealthCare LCS Parts | |
GE HealthCare | |
N/A | |
Enter your approval number and submit to add item(s) to cart.
Please enter approval number
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without the
approval number, GE will contact you before your order
can be confirmed for shipment.
Select your approver's name and submit to add item(s) to your cart
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Features
- Rigidity and flexible
- Good structural design
- Higher reliability and efficiency
- Great maintainability
Product Overview
The Printed Circuit Board (PCB) Assembly Cam-14 HD is used in Diagnostic Electrocardiogram (ECG) machines. The CAM-14 acquisition module is intended to acquire the analog ECG signal, digitize it and transmit the signal to a host unit. The PCB (Printed Circuit Board) is assembled in the CAM-14 HD. The circuitry is designed to protect the host unit against the effects of cardiac defibrillator discharge to ensure recovery. CAM-HD module has 3 software pieces that need to be programmed to flash memory during the board assembly. Two of these pieces are programmed to the Atmel AT45DB041 Dataflash (U113), and the third to the on chip flash memory of the AT Tiny2313 (U121) chip. The PCB consists of IC’s, diodes, resistors, connectors, capacitors, ferrite bead, LED and transistors. The PCB is mounted using the provided screws. Cables are connected to the main PCB. Fasteners are used as connections to ground panes on PCB. The ECG signal input is isolated and defibrillation-proof only in conjunction with CAM14. It is being used in CASE, MS CARESCAPE™ Monitor B850, CardioSoft, UL Vivid S6, Stress Other, UL Voluson P8, Premium Carts Other, CT SYTEC 8000 1-Slice, MAC 5500 HD, ARC Aisys CardioSoft, CT CTe 1 – Slice, Supplies and other applications.
Compatible Products
![CAM 14 CAM 14](/gehcstorefront/_ui/desktop/theme-green/images/missing-product-new-2024-300x300.jpg)
CAM 14
![CAM 14 v2 CAM 14 v2](/gehcstorefront/_ui/desktop/theme-green/images/missing-product-new-2024-300x300.jpg)
CAM 14 v2
![CAM 14 v2 (Product Code RNC and SK9) CAM 14 v2 (Product Code RNC and SK9)](/gehcstorefront/_ui/desktop/theme-green/images/missing-product-new-2024-300x300.jpg)
CAM 14 v2 (Product Code RNC and SK9)
Equivalent Part
Below is more information on the equivalent parts. Parts without a hyperlink are listed for reference only and are not available for purchase online.
Equivalent Part | Part Details |
---|---|
2028778-001 | PCB ASSY CAM14 V2 |
900995-004 | 900995-004 |
